    Internal Wave Serpentine Tube Stainless Steel Corrugated Tube Heat Exchanger

    Ask Lasest Price
    Brand Name : SAT-CHAM
    Model Number : Boiler header
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Tons / Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Internal Wave Serpentine Tube Stainless Steel Corrugated Tube Heat Exchanger

    Stainless Steel Internal Wave Tube, Corrugated Tube and Serpentine Tube for Heat Exchange
    What is the purpose of a header?
    Headers are used to create openings for windows, doors, and interior passageways. They serve a significant structural purpose. Since windows and doors cannot support weight other than their own, the weight of above these opening must be collected and redistributed to adjacent studs.
    What is a drop header?
    Dropped vs. Raised Headers – Trus Joist Technical Support
    A "dropped header" is a header that is installed below the roof or floor framing with a short wall (knee wall) between the header and the top plate. This detail can be problematic if the beam is not designed for the unbraced condition created.
    Quality Control
    1. Impact test and Strength calculation report with applied materials information.
    2. 100%NDT(non-destructive inspection) report of steel plate, tube and electrode
    3. X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler
    4. Hydraulic test report: ensure the standard working pressure and safety

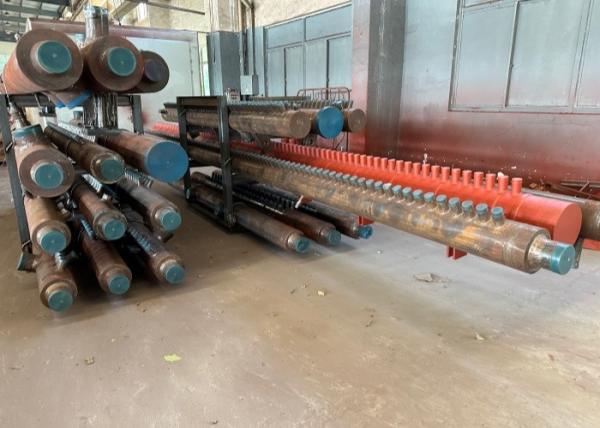

    Product Description:
    In order to improve the boiler efficiency, the header boiler is gradually developed into a tube boiler to increase the heat
    transfer area. The boiler water flows from the drum to the lower box through the downcomer, and it distributed to each tube bundle by the box. The water in these tube bundles continuously absorbs heat energy, and then flows back to the drum after being collected into the upper header. The upper and lower header are called headers. The header is an important part of the boiler, which is divided into upper header and lower header.
    Specification:
    Diameter(OD)
    ¢76mm~¢914mm
    Length(Max)
    23000mm
    Temperature(℃)
    300~1500
    Brand
    SAT-CHAM


    Application:

    air cooler, fired heater, heat exchanger, marine boiler, economizer, power plant boiler, HRSG boiler, waste heat recovery unit, air heater etc

    Characteristic:1.Anti-corrosion2.Anti-wear3.Lower contact resistance 4.Higher Stability
    Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.it has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.

    Technical parametersThe high degree of fin 0-16mm(or outside diameter of fin φ25-φ75);
    Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
    Single metal rolling finning tubePure aluminum 1060 or aluminum alloy 6063,6061.
    Outside diameter Shall be less than 40mm
    Double metal rolling finning tubeTube-based protection from the outer layer of aluminum
    tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless
    steel tube and copper tube can also be used, as well as titanium alloy tube
    PackageThe aluminum finned tubes are well packed in plastic film in the inner and steel fram
    in the outer

    FAQ:

    Q1: How long is the warranty period?
    We provide 18 months warranty for all spare parts(exclude fragile parts).

    Q2: How can we guarantee quality?
    1 All machines are in strict accordance with the ISO quality and CE system requirements.
    2 Each procedure is crafted by professional Skilled labour, followed by particular QC
    3 All information of our products can be checked in efficient management system.

    Q3: What can you buy from us?
    Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall,
    Boiler manifold headers and other pressure spare parts.

    Q4: What kind of service do you provide?
    Before sales:
    Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.

    Q5: Are you a factory or trading company, where are you located?
    We are a factory, just 130km(2 hours by car) away from Shanghai Airport.
    We offer pickup service at Shanghai for your visit.
